    0.3mm-0.8mm Thickness PPGI Metal Roof Roll Forming Machine With 14 Stations

    Ask Lasest Price
    Brand Name : BMS
    Model Number : YX35-273-820
    Certification : CE/SGS/ISO9001
    Price : Negotiate
    Payment Terms : L/C, T/T
    Supply Ability : 30set/month
    Delivery Time : 45days
    • Product Details
    • Company Profile

    0.3mm-0.8mm Thickness PPGI Metal Roof Roll Forming Machine With 14 Stations

    PPGI High Quality Metal Roof Roll Forming Machine With 14 Stations


    1. Technical Parameters


    Materialgalvanized sheet(GI),cold roll steel(CRC).
    ThicknessFrom 0.3 mm to 0.8mm.
    Main Motor Power5.5 kw.
    Hydraulic Power5.5 kw.
    Feeding Width1200mm.
    Total Speed18-20m/min
    Cutting Tolerance≤±2 mm
    Manual Uncoilercapacity is 5 tons.
    Coil Inner Diameter508mm±30mm
    Voltage380V, 3 phase, 50 HZ, or customized.
    Forming Station14 stations.
    Type of Cuttingroll-formed and length-set profile cutting.


    2. Material of Main Equipment:



    Roller Materialmanufactured from high quality 45# steel, CNC lathes, Heat Treatment. with black treatment or Hard-Chrome Coating for options.
    Active Shaft Materialmanufactured from 45#, Main shaft diameter=φ75mm, precision machined
    Electric Elements5.5 kw.
    Cutter Blades5.5 kw.

    3. Profile Drawing



    3. Detailed Images of YX35-820 roof panel forming machine

    Machine Parts
    1) YX35-820 roof panel machine pre-cutter

    Brand: BMS Original: China
    With feeding material guide.




    2) YX35-820 roof panel machine rollers

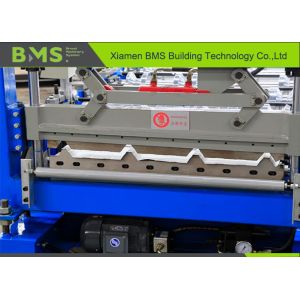

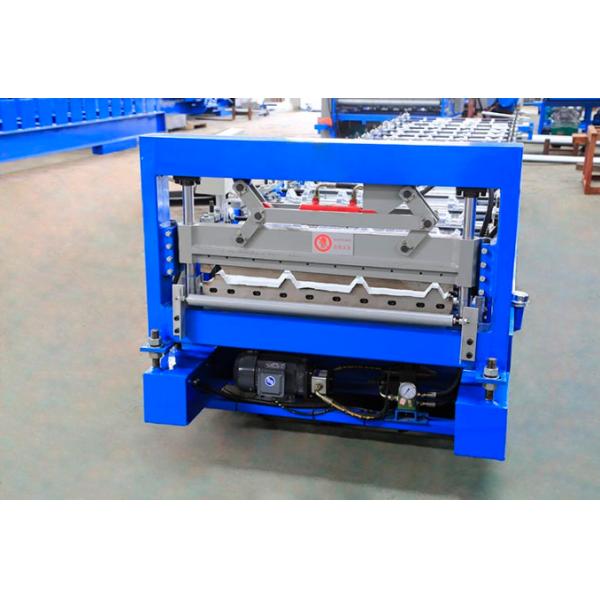

    3) YX35-820 roof panel machine post cutter


    Made by high quality mold steel Cr12 with heat treatment

    Cutter frame made from high quality 20mm steel plate by welding

    hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa



    4) YX35-820 roof panel machine touch screen



    5) YX35-820 roof panel machine control cabinet



    6) YX35-820 roof panel machine decoiler

    ManualDecoiler: one set

    Un-powered,manually control steel coil inner bore shrinkage and stop

    Max. feeding width: 1200mm, coil ID range 508mm±30mm
    Capacity: 5-9 Ton



    With 6 tons hydraulic decoiler for option

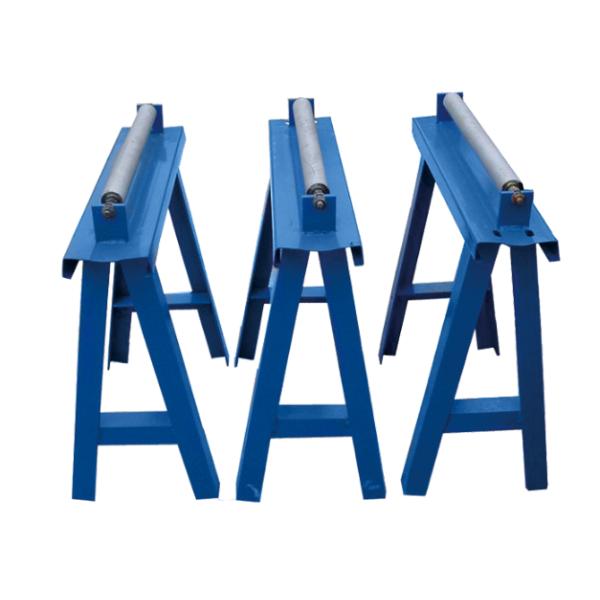

    7) YX35-820 roof panel machine exit rack

    Un-powered,three units



    4. Other detailes of YX35-820 roof panel roll forming machine

    Motor driving,Gear chain transmission, 14 steps to form.
    Main motor=5.5KW , Frequency speed control. Forming speed approx.12-15m/min

    PLC Control System


    Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
    Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,

    Encoder brand:Japan Koyo/OMRON)
    Combined with: PLC, Inverter, TouchScreen, Encoder, etc
    Cut-to-lengthtolerance≤±2 mm
    Control Voltage 24V
    User's manualin English


    5. The advantages of roof panel machine are as follows:


    1.Low cost, light weight but high strength, short building period, and re-cycle use

    2.Save material ,no waste.

    3.Easy operation,low maintenance cost

    4.Able to deal with stainless material


    6. After-sale service of roof panel roll forming machine


    1. The warranty of purlin roof panel roll forming machine is one year after the client receives the machine. Within the one year, we will courier the replacement parts to the client free of charge.

    2. We offer technical support for the entire life of our machines.

    3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
