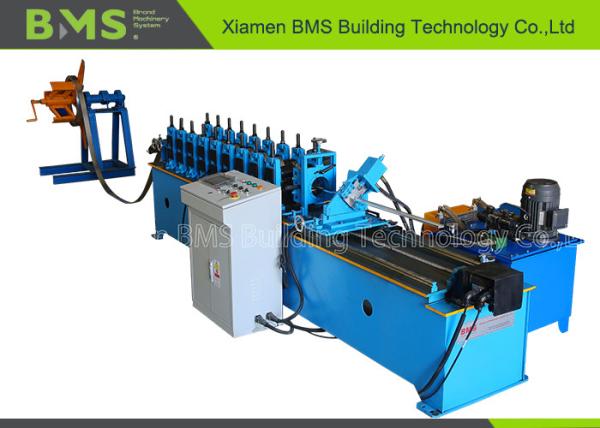

Galvanized Sheet Light Gauge Steel U Stud Roll Forming Machine for Drywall

1. The U Metal Stud And Track Roll Forming Machine of workflow:

Decoiler—Feeding guide---Roll forming---Hydraulic cutting---PLC control cabinet---Run out table

2. U Metal Stud And Track Roll Forming Machine key component:

Decoiler, main forming machine, hydraulic cutting device, PLC control system, hydraulic system,run-out-table

3. Technical parameters of U Metal Stud And Track Roll Forming Machine

1) Decoiler(Optional: Hydraulic Type and Manual type)

Un-powered, Manually control steel coil inner bore shrinkage and stop

Max Feeding width: 600mm,coil ID range 508mm±30mm

Capacity: Max. 3 Ton

2) Main forming machine

A. Shaft material: Shafts Diameter=ф70mm, precision machined

B. Main motor power:7.5kw

C. Forming speed Max.:35m/min or as per request.

D. Voltage:380v,50hz,3ph

E. Roller station:10 stations

3) Cutting system

A. Hydraulic cutter

B. Blade and mould material: Cr12Mov, Heat treatment to HRC58-62 degree

C. Cutting system advanced hydraulic drive, after automatic cutting after forming.no

4) PLC Control system

A. PLC: Schneider from France or Siemens from Germany or Delta from Taiwan for optional.

B. Encoder: Omron (Japan brand)

C. 7-Inch Color Touch Screen: Siemens (German brand)

Cut-to-Length Tolerance≤±1 mm

5) Hydraulic system

A. An advanced hydraulic system from German.

B. Power:3kw

4. Tools And Spare Parts

Toolbox: open wrench 24x22, 22x19, 19x17, 17x14, a hex wrench (size 1 to 10),

a vice, a cross and a flat-head screwdriver, a feeler, iron A hammer, a tape measure;

Spare parts: 1. drive chain x1;2. Drive bearing x2; 3. Shear control travel switch x1.

Other terms:

1. Delivery: In stock

2. Package: export standard package for container

3. Payment: TT (30% by TT in advance,70% by TT after you inspect machine we need)

4. Delivery date: within 35 working days after receiving deposit

5. Products Warranty: Two years, and we will provide Field installation, commissioning and training, Video technical support, Online support.
