    G300 Aluminum Portable Standing Seam Roll Former With PLC Automatic Control System

    Ask Lasest Price
    Brand Name : BMS
    Model Number : YX65-430
    Certification : CE/ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 65set/month
    Delivery Time : 60days
    • Product Details
    • Company Profile

    G300 Aluminum Portable Standing Seam Roll Former With PLC Automatic Control System


    YX65-430 Portable Standing Seam Rollforming Machine with PLC Automatic Control System
    Support customer customization
    Type: Roll Forming Line for Standing Seam Profile
    Types: YX65-430
    Brand: BMS Brand Roll Forming Machine


    The Chart of Process Flow
    Decoiler---Manual pre-cutter---Roll Forming Machine---Hydraulic Post cutter---Exit Rack


    Technical Parameters
    The main technical parameters are for your inference only.
    Only if you provide the profile required or the real objects of sectional materials,
    and we will offer accurate parameters.

    (1) 3 Tons Decoiler
    DescriptionThere are different choices, please turn to the catalogue of decoiler
    (2)The Main machine parameter
    Suitable roll forming materialColor steel sheet or galvanized steel sheet or
    Thickness0.5-0.7mm
    Frame designWall-plate-frame-design /Strong-stand-frame-design
    Roll stages14 stages
    The material of forming roller45# steel with forge treatment, CNC lathes, Hard Chrome Coated
    Shafts DiameterΦ75mm
    Main motor power7.5KW with reducer
    Max. Line speed of roll former15-18m/min (Higher speed is available, depends on the specification required by the buyer)
    Hydraulic group power4 KW
    The material of the cutting bladeCr12Mov, hear treatment
    Electric seaming machine and hand seaming pincers work together with machine
    Electric Standard415V /50Hz/3PH or as the customer's requirements
    Major Color of Machine PaintedBlue(RAL5015)+ orange (RAL2004) or as per customer's requirements

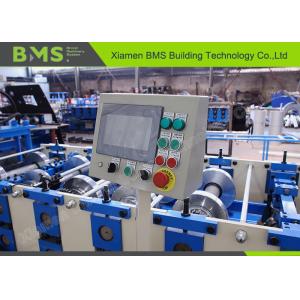

    (3) PLC Control system
    PLCSiemens (French brand)
    Touch ScreenSiemens (French brand)
    InverterSchneider (French brand)
    EncoderOmron/Koyo (Japan brand)
    (4)Exit rack
    Descriptionun-powered, 3 units
    (5) Hand Pincer2 units
    (6) Electric Seaming Machine1 unit
    (7)Option:
    1. 40GP/HQ container and Disposal inside for standing seam machine

    (8) About us


    Roll Forming machinery manufacturing expert


    YX65-430Roll Forming Line for Standing Seam Profile


    Profile:


    Profile Display:


    Roller: Hard chrome plating, corrosion-resistant, not easy to rust


    Post cutter:


    Main Machine:
