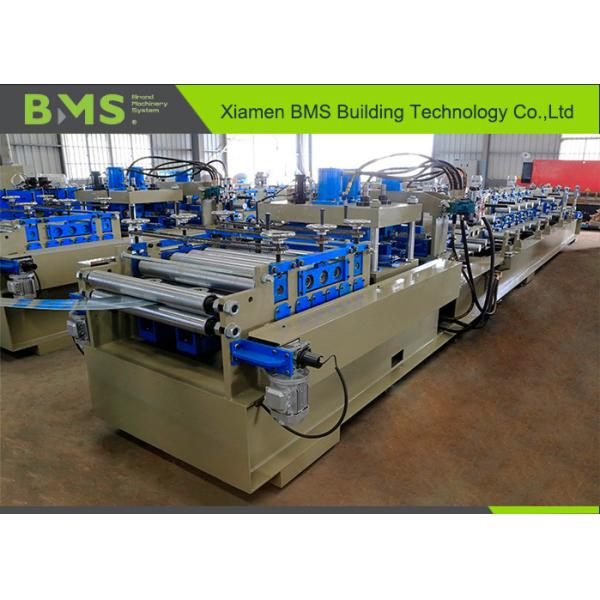

GCr15 Roller Material C Z Interchangeable Purlin Machine 380V 50HZ

Ô Profile Drawing

Ô Product Details

Ô Main features of C Z purlin roll forming machine

The advantages of CZ purlin machine AUTOMATIC size-change type are as follows:

1.Produce different purlin size without changing rollers or spacers.

2.Easy operation, low maintenance cost

3.Infinite sizing(any size within machine range),help to save material

4.Optional Punch hole at any position of purlin web side and flange side

5. No need changing cutter for different size.

bigger shaft to ensure stable working for long time and no curving or transforming

Ô Machine Parts

1) CZ purlin machine punching system

with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.

2) CZ purlin machine rollers

3) CZ purlin machine control cabinet

PLC Control System (Inverter brand:SCHNEIDER ELECTRIC,Encoder brand:Japan Koyo/OMRON)

Just adjust required WEB,HEIGHT and LIP by hand wheel with the help of position clock

(with digit display for easy operation) on it,

and then input the required production data on the touch screen.

It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters

like traditional old style machine (which takes over 45 minutes for each production size changing).

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-length tolerance≤±2 mm

Control Voltage 24V

4) CZ purlin machine location pin

5) CZ purlin machine decoiler

Manual Decoiler: one set

Un-powered,manually control steel coil inner bore shrinkage and stop

Max. feeding width: 500mm, coil ID range 470mm±30mm

Capacity: Max. 3Ton

With 3 tons hydraulic decoiler for option

6) CZ purlin exit rack

Un-powered,one unit

Ô Other detailes of CZ purlin roll forming machine

Motor driving,Gear chain transmission, 15 rollers to form and 4 rollers for straightening and levellMain motor=22KW/30KW(bigger power for higher speed)

Frequency speed control. Forming speed approx.18m/min

CZ purlin machine pre-cutter made by high quality mold steel Cr12(D3 steel) with heat treatment

Cutter frame made from high quality 30mm steel plate by welding

Pre-punching & Pre-cutting, stop to punch, stop to cut

hydraulic motor:7.5KW,Hydraulic pressure range:0-16Mpa

User's manual in English
